Technical data

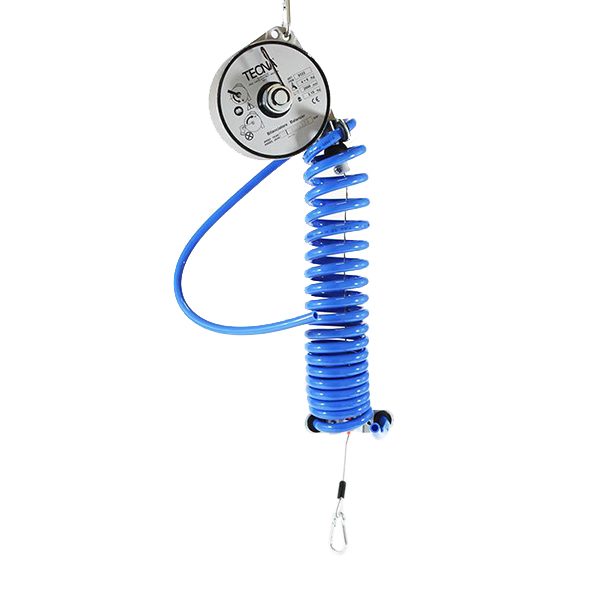

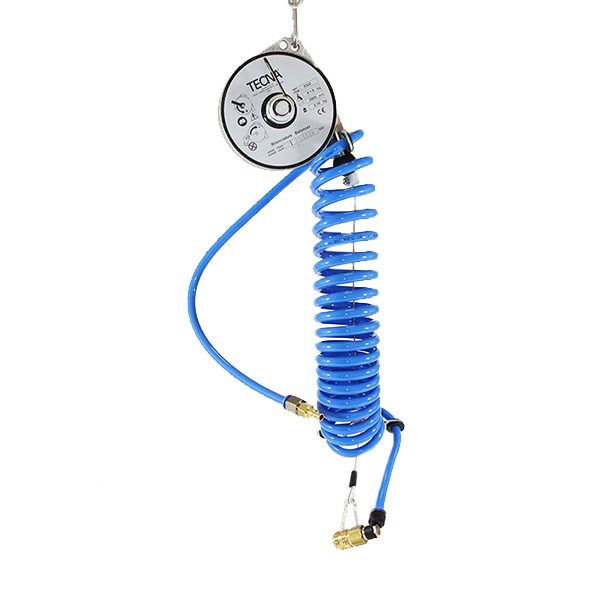

The specially designed P931X spiral hose kit is used to supply compressed air to pneumatic tools suspended from cable balancers. The construction of the kit is ergonomic and lightweight. The balancer cable is located inside the spiral cable. The handle can be easily fitted to new and used Tecna balancers without interfering with its internal construction.
Handle specifications:
- air duct diameter: 10 x 6.5 mm
- cable length: 5 mb ( working length 80% )
- Outer diameter of spiral: 70 mm
- handle material: steel
- cable length: 5 mb ( working length 80% )
- Outer diameter of spiral: 70 mm
- handle material: steel
Hose parameters:
- colour of snakes: light blue
- temperature range -20oC to +70oC
- working pressure at 23oC: 9 - 12 bar (depending on hose diameter)
- safety factor: 3 to 1
- working length: 80 - 90 % overall length
- length of straight sections: 10 cm / 50 cm
- Shore hardness: 95 A
- temperature range -20oC to +70oC
- working pressure at 23oC: 9 - 12 bar (depending on hose diameter)
- safety factor: 3 to 1
- working length: 80 - 90 % overall length
- length of straight sections: 10 cm / 50 cm
- Shore hardness: 95 A
Fits the following Tecna balancer models:
- model 9311; 9312, 9313

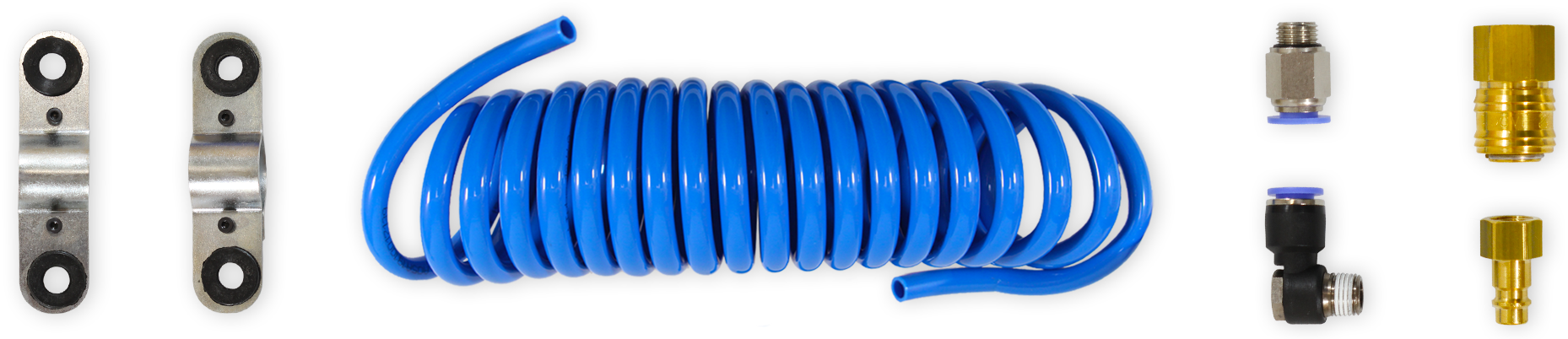

The kit includes:
– galvanised steel handle

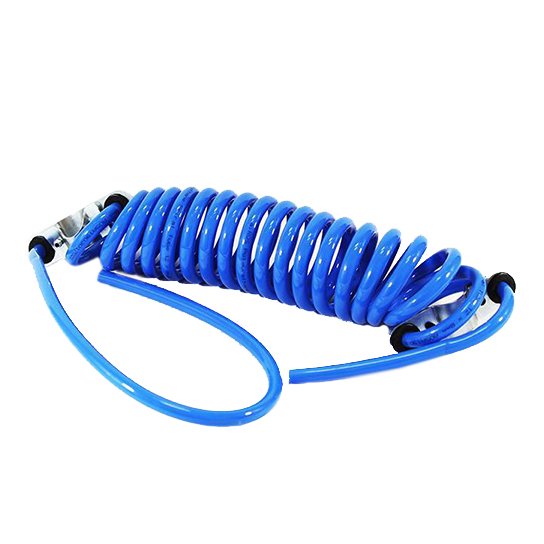

- spiral hose without fittings

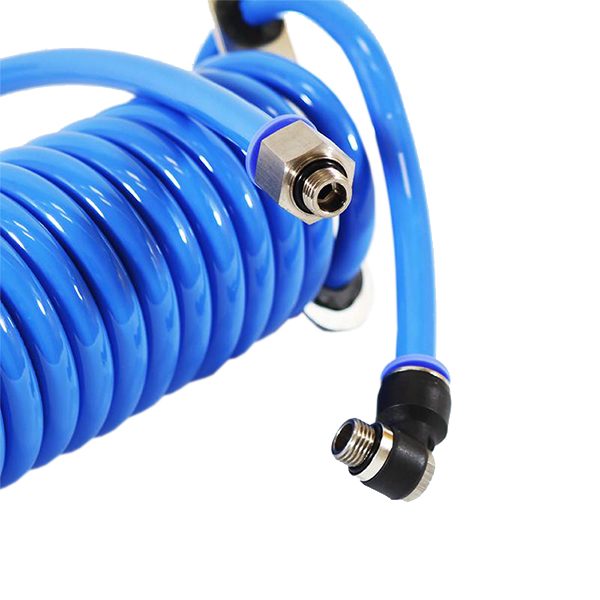

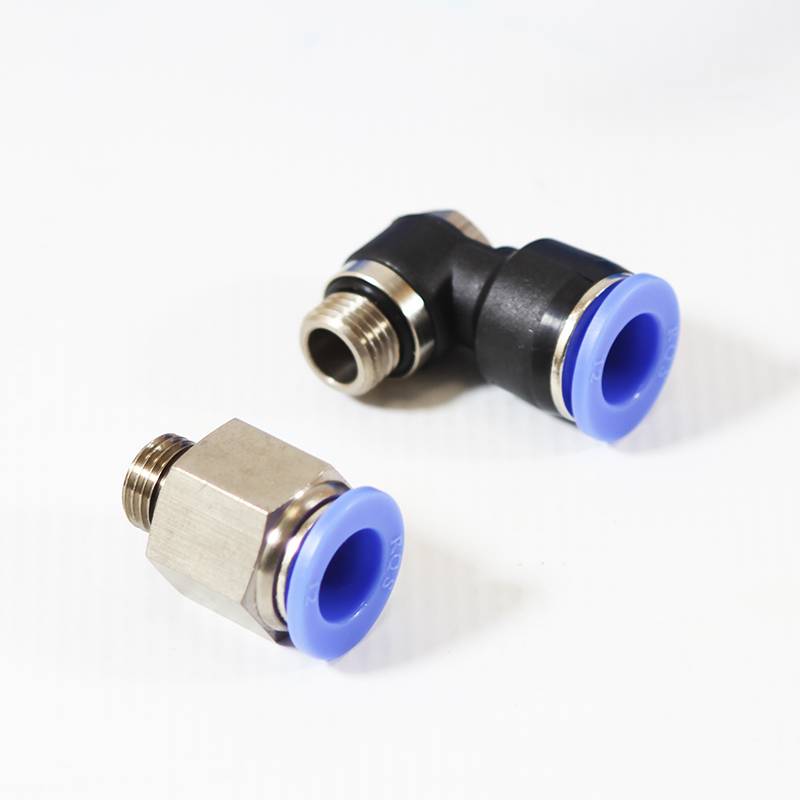

- Straight connector 10 x 6.5 mm - 1/4″ socket ext. - 1 pc.
- angled connector swivel 10×6.5 mm 1/4″ ext. thread =- 1 pc

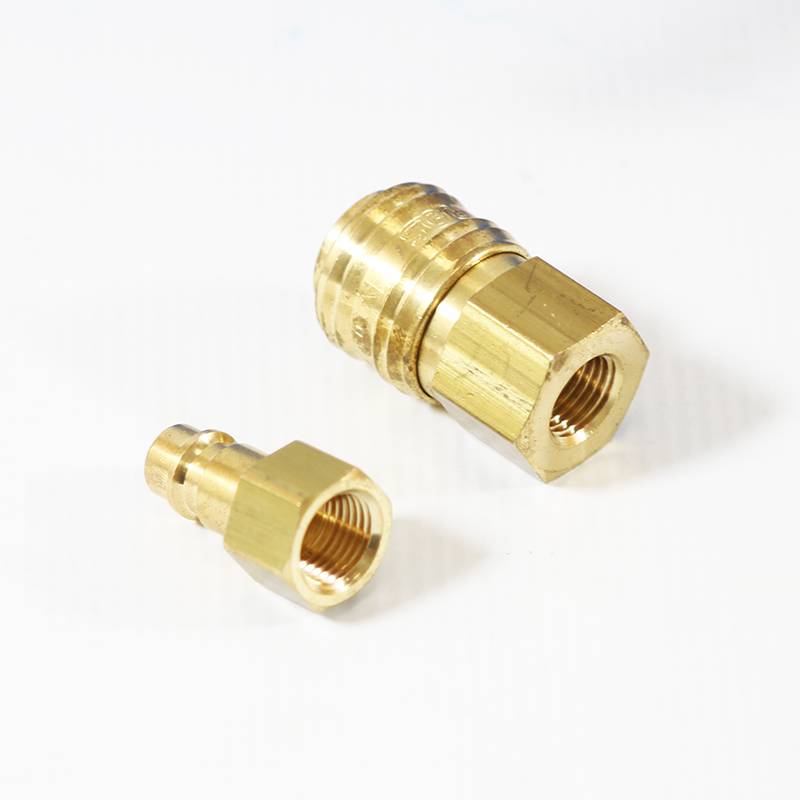

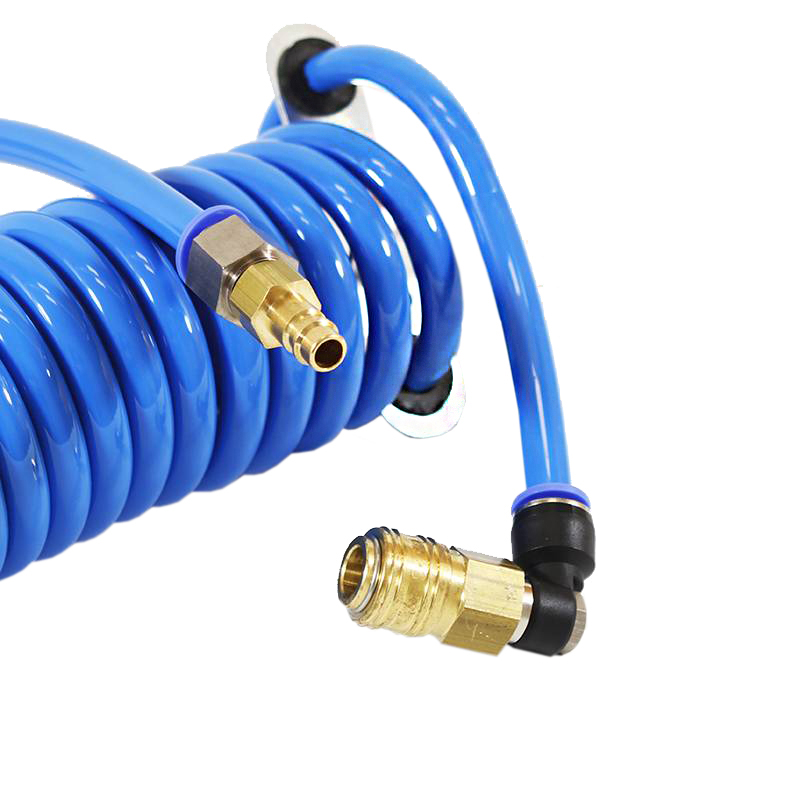

- 1/4″ male threaded couplings - 1 pc.
- 1/4″ female threaded coupling - 1 pc.
More details -> HERE
