Name: Pneumatico rotary tool crane JG-2003 3m 35kg
SKU: model_JG-2003-35
Price: 1.00 PLN
Availability: InStock

Technical data

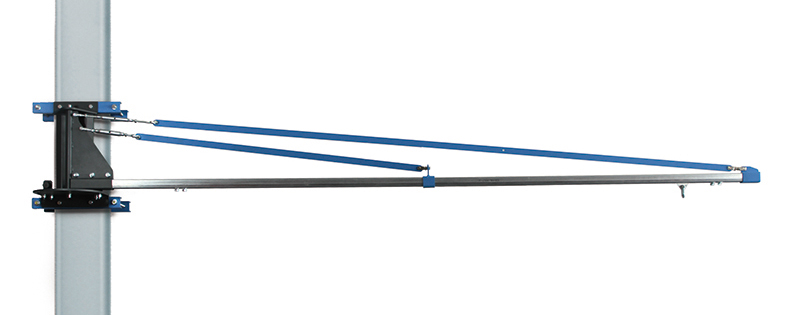

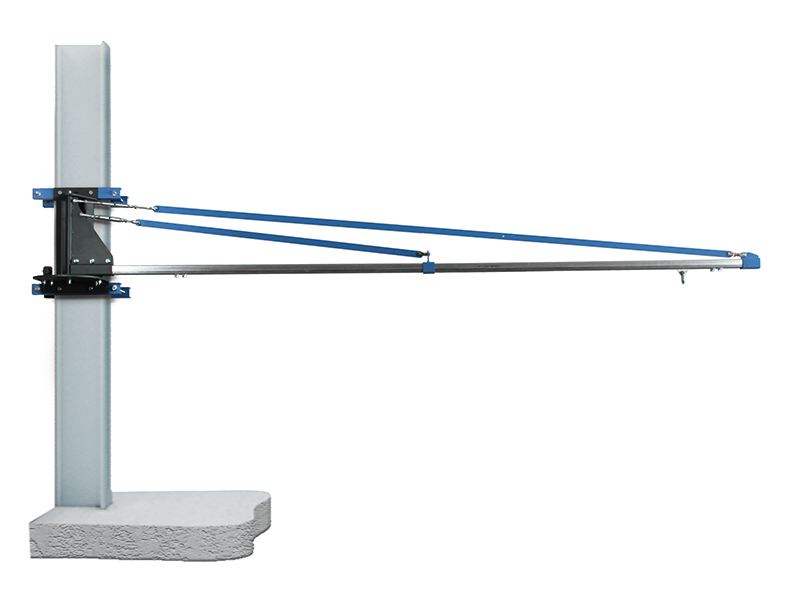

Pneumatico JG-2003 wall-mounted slewing jib crane, also known as slewing jib, which is equipped with a 200 cm or 300 cm long rail with trolley, is used for load handling. The four-wheel bearing trolley ensures very easy movement. Thanks to the use of a top brace and a cold-bent steel profile with low dead weight, the arm rotates very easily. The weight of the entire set is 20 kg for an arm length of 200 cm and 23 kg for a length of 300 cm. The trolley has a shackle hole to which a cable balancer can be attached. The trolley is fitted with rubber shock absorbers to reduce noise at the extremes. The JG-2002/2003 swivel arm is angle-adjustable, so we can adapt the working area to the needs of the operation. Adjustment of the working angle is also important when installing several cranes in a row to avoid collisions between the arms.

Application:

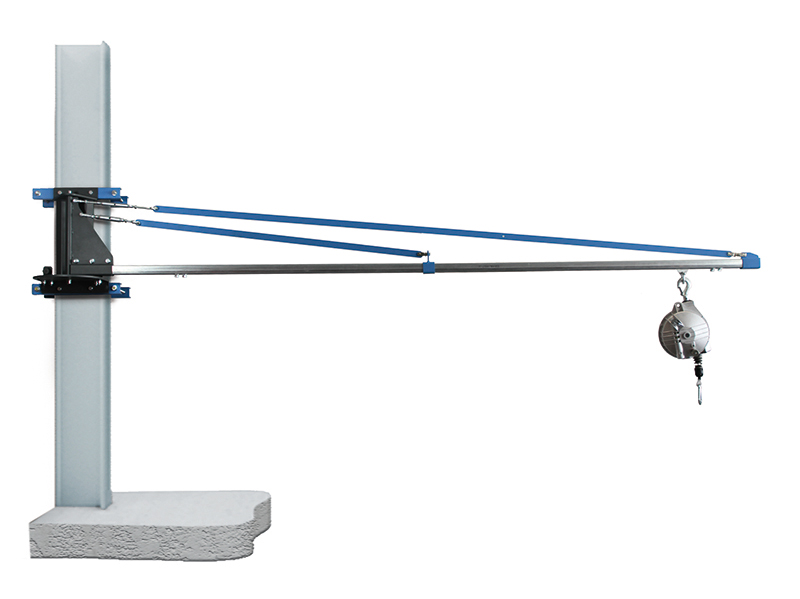

Slewing cranes, also known as slewing arms, together with a balancer or hoist, are ideal for assembly and production operations. On the cable balancer are suspended :

- power tools
- pneumatic tools
- hydraulic tools

Production workstations equipped with swivel arms and balancers increase production efficiency, enhance occupational safety and relieve strain on the employee's skeletal-muscular system.

Technical data:

- Load capacity up to 35 kg
- robust steel construction
- galvanised rail with four-wheel bearing bogie

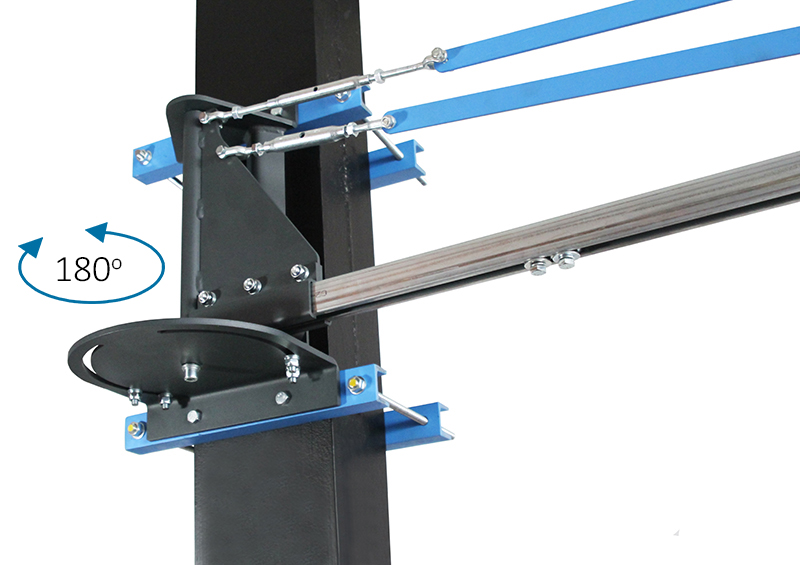

- super-light 180-degree rotation
- adjustable angle for improved ergonomics

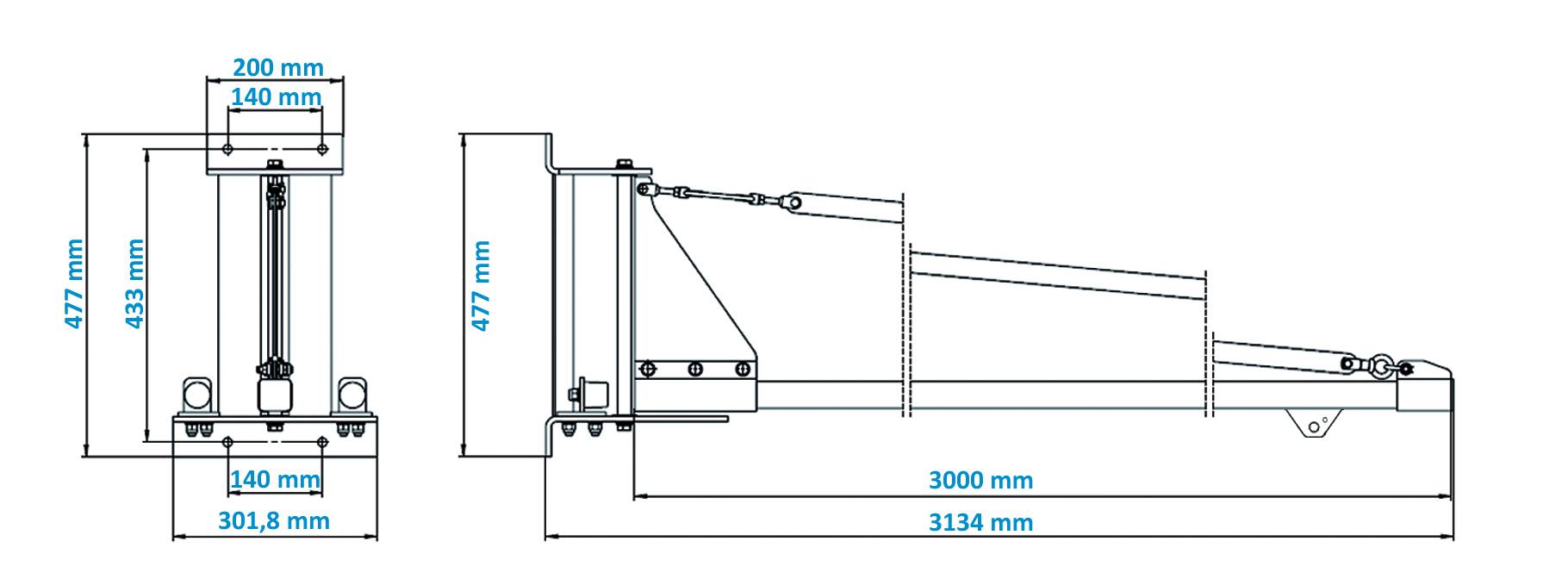

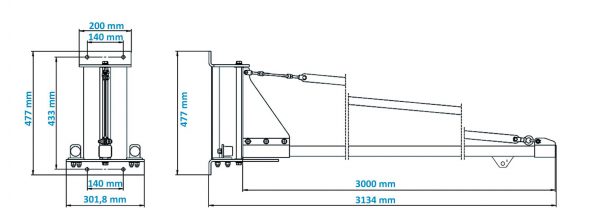

- working dimensions of the arm: 300 cm
